ESKINA FRAME 75 FL
ESKINA FRAME 75 FL
Regular price
€370,00 EUR
Regular price
Sale price
€370,00 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
A thoroughly successful design, elegantly packaged in a rectangular aluminum frame: the popular ESKINA outdoor luminaires now offer even more application possibilities in the FRAME design alternative. The anthracite-colored ESKINA FRAME looks great in any outdoor area. The rotating heads allow for flexible light output adjustment. Thanks to its high IP rating, ESKINA is also optimally protected against wind and weather. Furthermore, the light color (3000/4000 K) can be easily changed using the CCT Switch before installation. Easy installation is a mere formality.
Technical data
Material name: ESKINA FRAME 78
BIG WHITE Page: 737
Color: anthracite
Material: Aluminum
Power: 15 W
Luminous flux: 1100/1200 lm
Light color temperature: 3000/4000 Kelvin
Half-angle of dispersion: 95°
IRC: 80
Dimmable: Yes
Regulation technology: Initial phase cut / Final phase cut
CCT regulator: Yes
IP Code: IP65

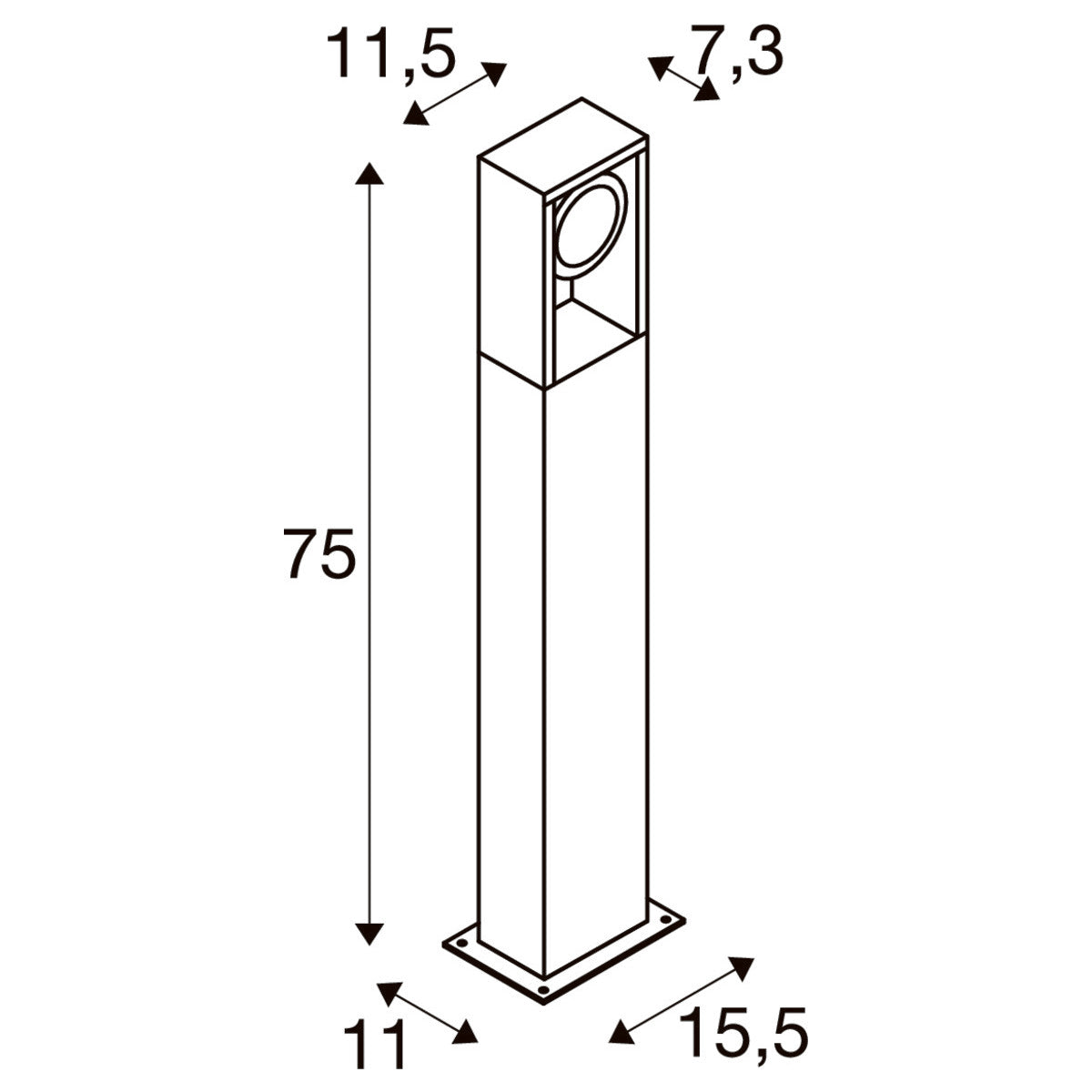

Length: 11.5 cm
Width: 7.3 cm
Height: 75 cm
Rotatable or adjustable: adjustable
Vertical rotation range: 320°
Light output: Direct
Luminous intensity distribution: rotationally symmetric
Impact resistance class: IK06
Impact resistance: 1 joule
Primary nominal voltage: 220-240V ~50/60 Hz
Secondary electrical current / Secondary voltage: 350 mA
Ambient temperature: -20 - 35 °C
Net weight: 3.01 kg
Weighted consumption: 15 kWh/1,000h
Lifespan: 30000 h
Input current intensity: 30 A
Input current duration: 40 μs
Risk group: 1
Luminous flux: 1100 / 1200 lm
