RASTERLYS POLE 70

RASTERLYS POLE 70

€360,00 EUR
€360,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

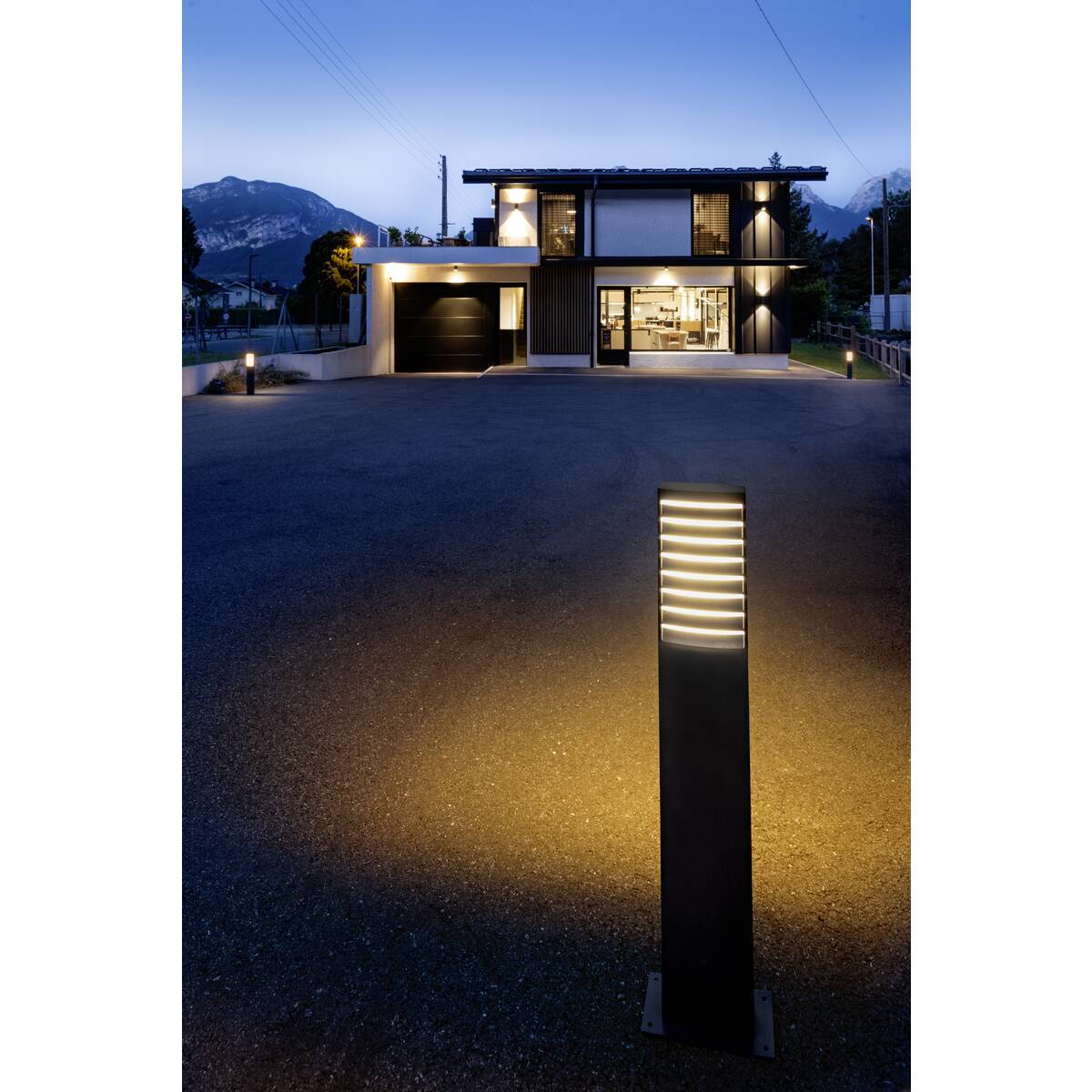

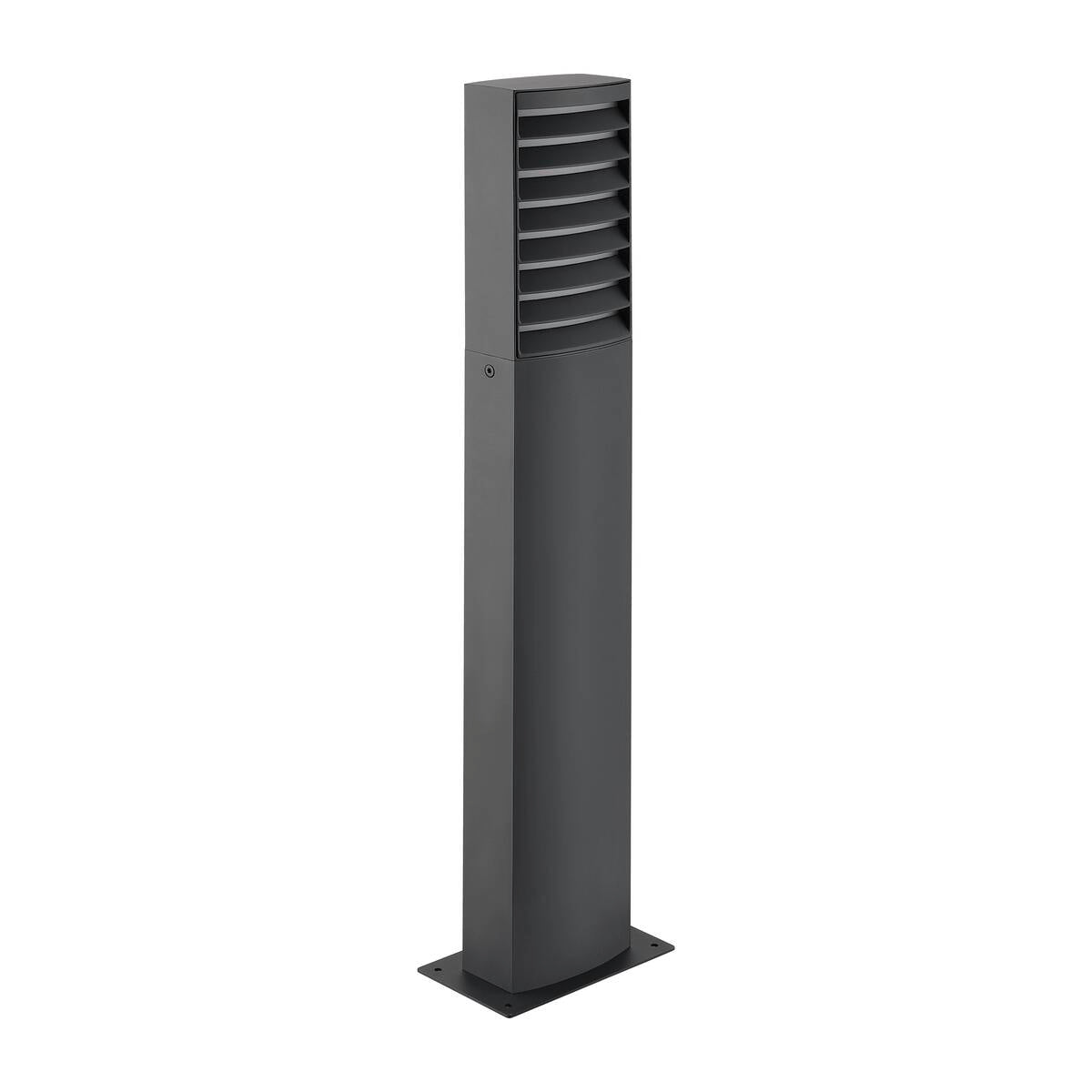

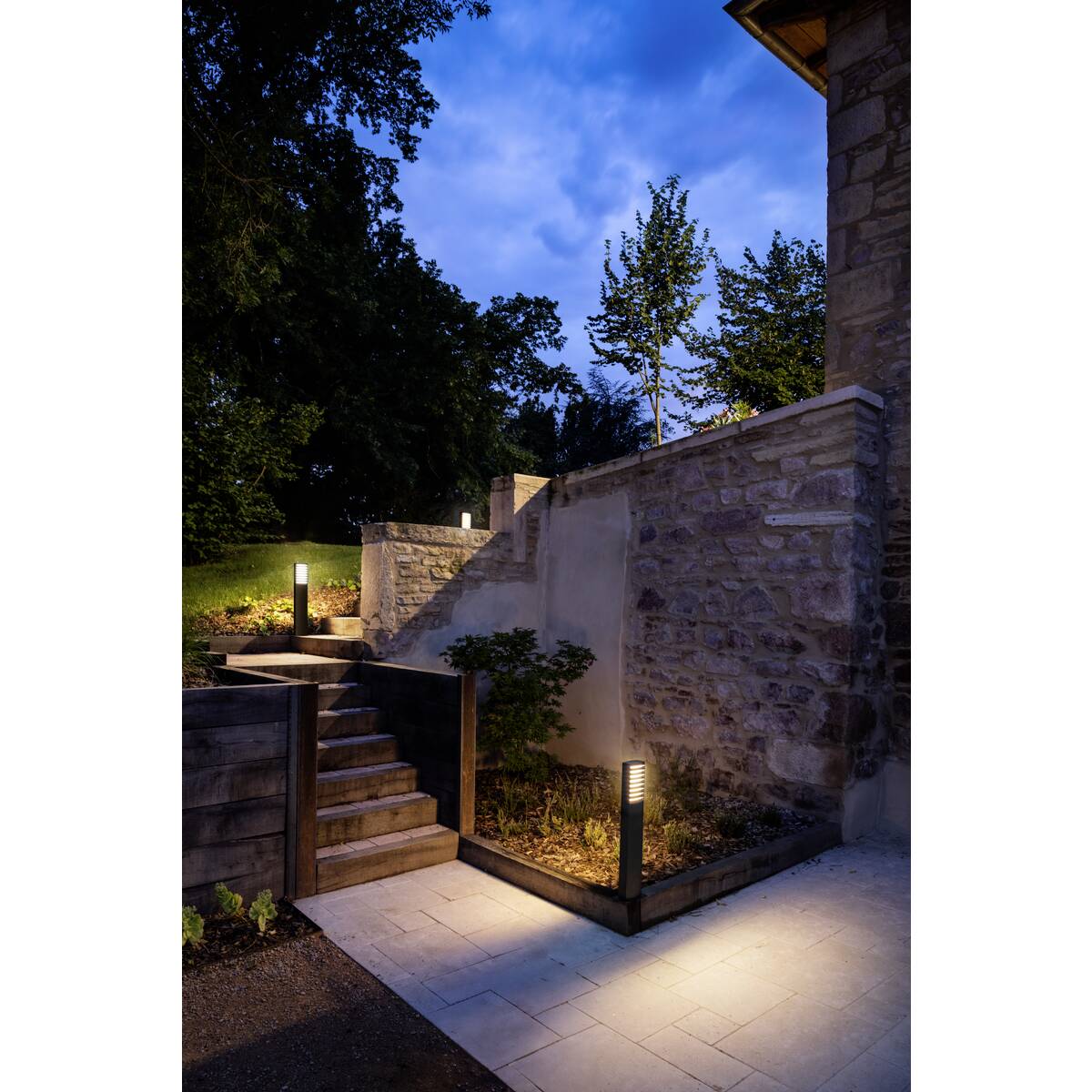

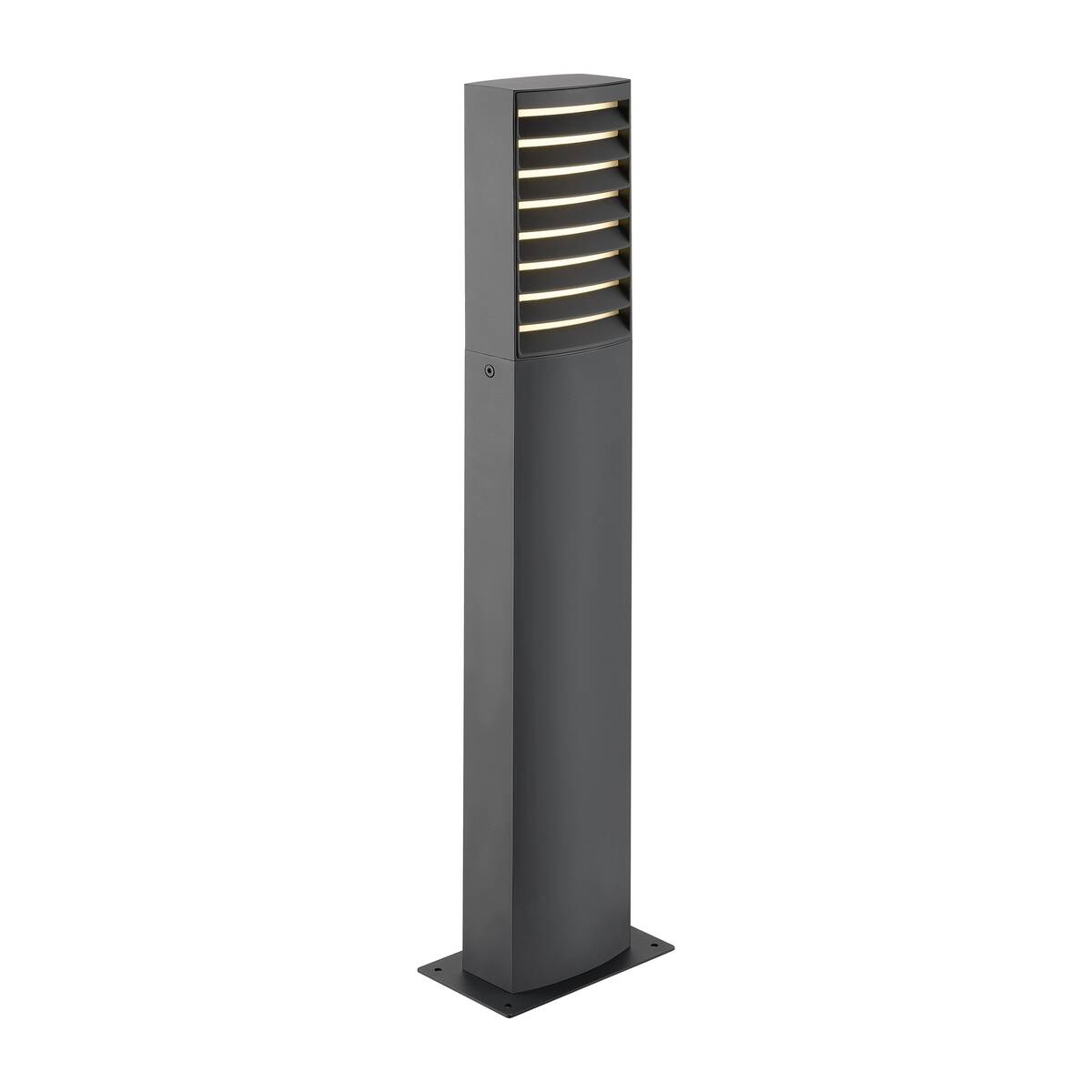

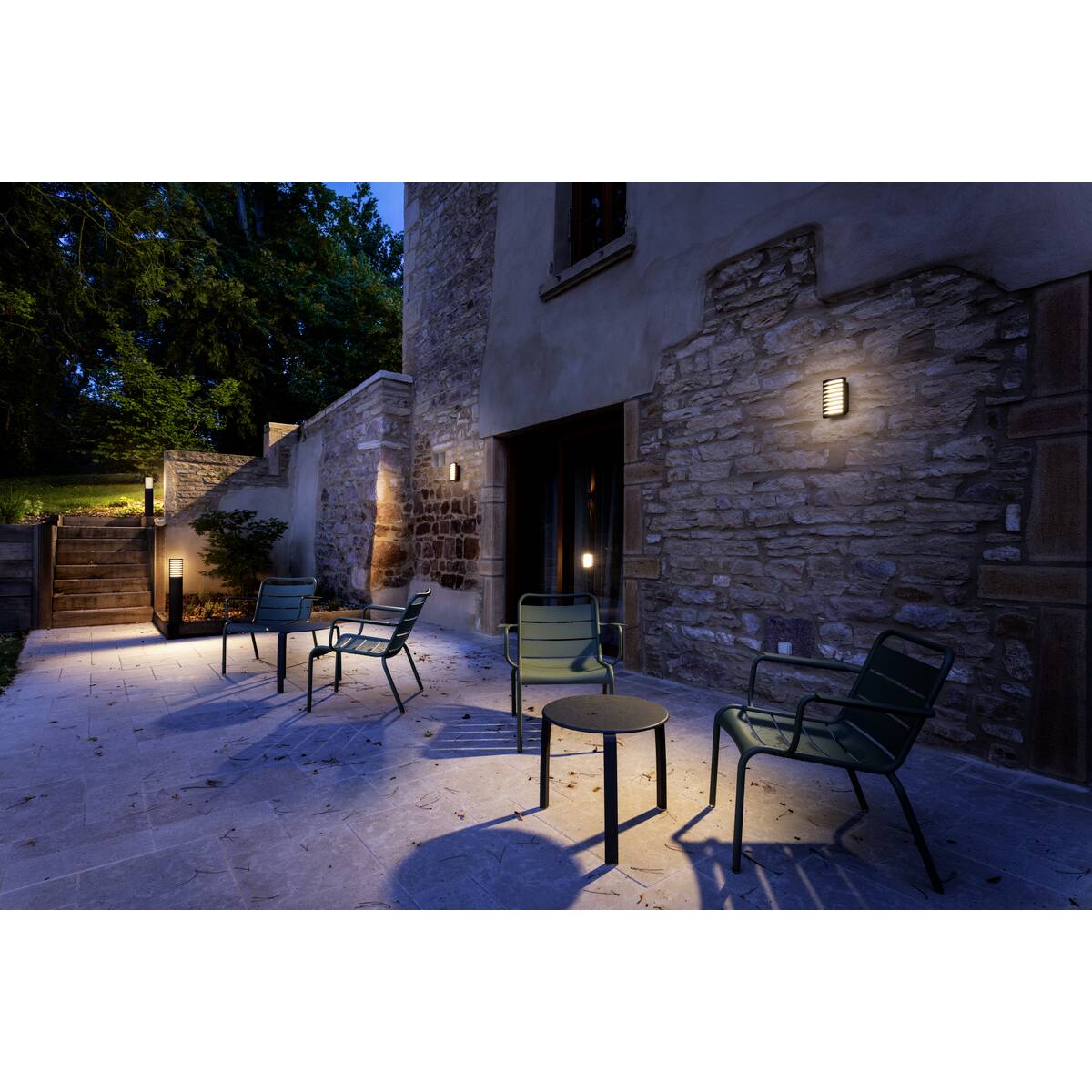

The RASTERLYS series combines modern design with high functionality. Whether installed individually or in a row, these wall and bollard lights not only provide effective illumination but also serve as an aesthetic focal point on facades, entrances, terraces, or outdoor areas of restaurants and bars. With a warm white light (2700 K / 3000 K via a CCT switch), they create atmospheric accents outdoors. Thanks to their IP65 rating and resistance to salt air, RASTERLYS is particularly robust and durable. The Triac dimming function and loop-in/loop-out connection allow for flexible and efficient installation.

Technical data

Material name: RASTERLYS 70
BIG WHITE Page: 735
Color: anthracite
Material: Aluminum
Power: 27 W
Luminous flux: 350/375 lm
Light color temperature: 2700/3000 Kelvin
Half-angle of dispersion: 70 / 70 °
IRC: 80
Different light outputs: 2
Dimmable: Yes
Regulation technology: Initial phase cut / Final phase cut
CCT regulator: Yes
IP Code: IP65
Mounting: Surface
Assembly details: Floor
Shape: Rectangular

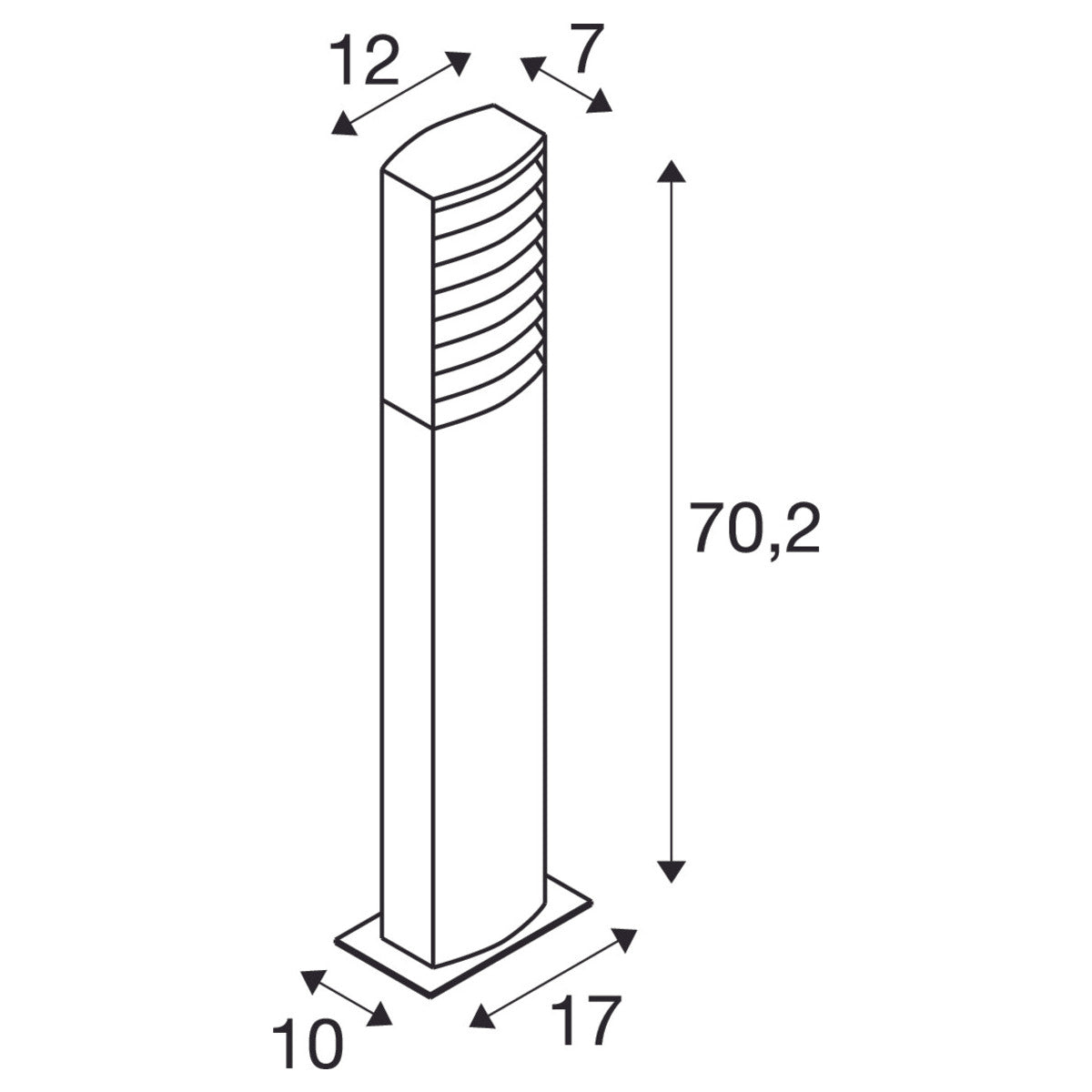

Length: 17 cm
Width: 10 cm
Height: 70.2 cm
Impact resistance class: IK06
Impact resistance: 1 joule
Primary nominal voltage: 220-240V ~0/50/60 Hz
Secondary electrical current / Secondary voltage: 700 mA
Ambient temperature: -20 - 40 °C
Net weight: 2.7 kg
Weighted consumption: 27 kWh/1,000h
Lifespan: 50000 h
Number of lights on LS B16A: 28 St.
Number of lights on LS C16A: 59 St.
Input current intensity: 10 A
Input current duration: 300 μs
Temperature in the glass (light emission): 60 °C
Risk group: 1
Luminous flux: 350 / 375 lm
