RASTERLYS WL

RASTERLYS WL

€199,99 EUR
€199,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

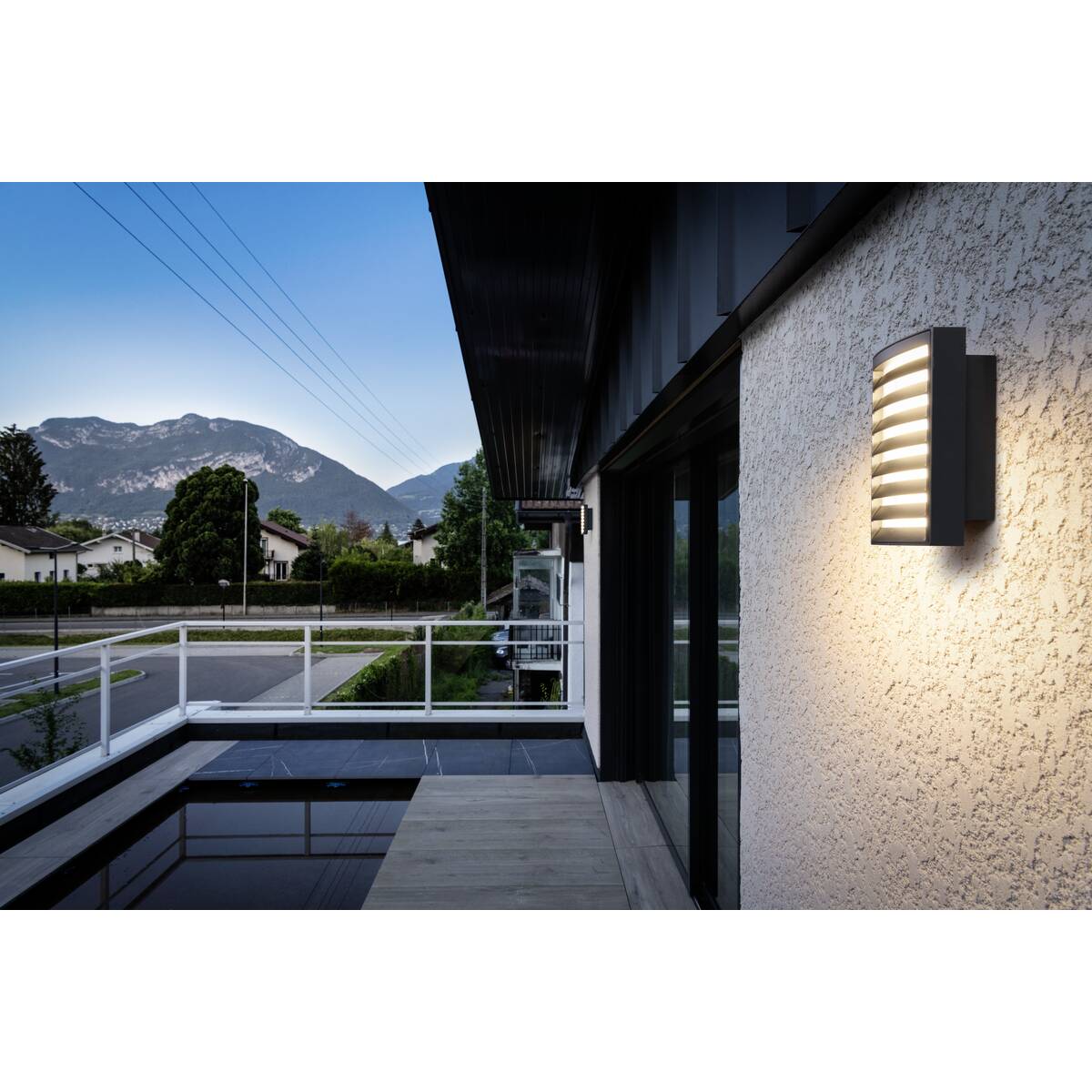

The RASTERLYS series combines modern design with high functionality. Whether installed individually or in a row, these wall and bollard lights not only provide effective illumination but also serve as an aesthetic focal point on facades, entrances, terraces, or outdoor areas of restaurants and bars. With a warm white light (2700 K / 3000 K via a CCT switch), they create atmospheric accents outdoors. Thanks to their IP65 rating and resistance to salt air, RASTERLYS is particularly robust and durable. The Triac dimming function and loop-in/loop-out connection allow for flexible and efficient installation.

Technical data

Material name: RASTERLYS
BIG WHITE Page: 933
Color: anthracite
Material: Aluminum
Power: 14 W
Luminous flux: 350/400lm
Light color temperature: 2700/3000 Kelvin
Half-angle of dispersion: 70
IRC: 80
Different light outputs: 1
Dimmable: Yes
Regulation technology: Initial phase cut / Final phase cut
CCT regulator: Yes
IP Code: IP65
Mounting: Surface
Assembly details: SPared
Shape: Rectangular

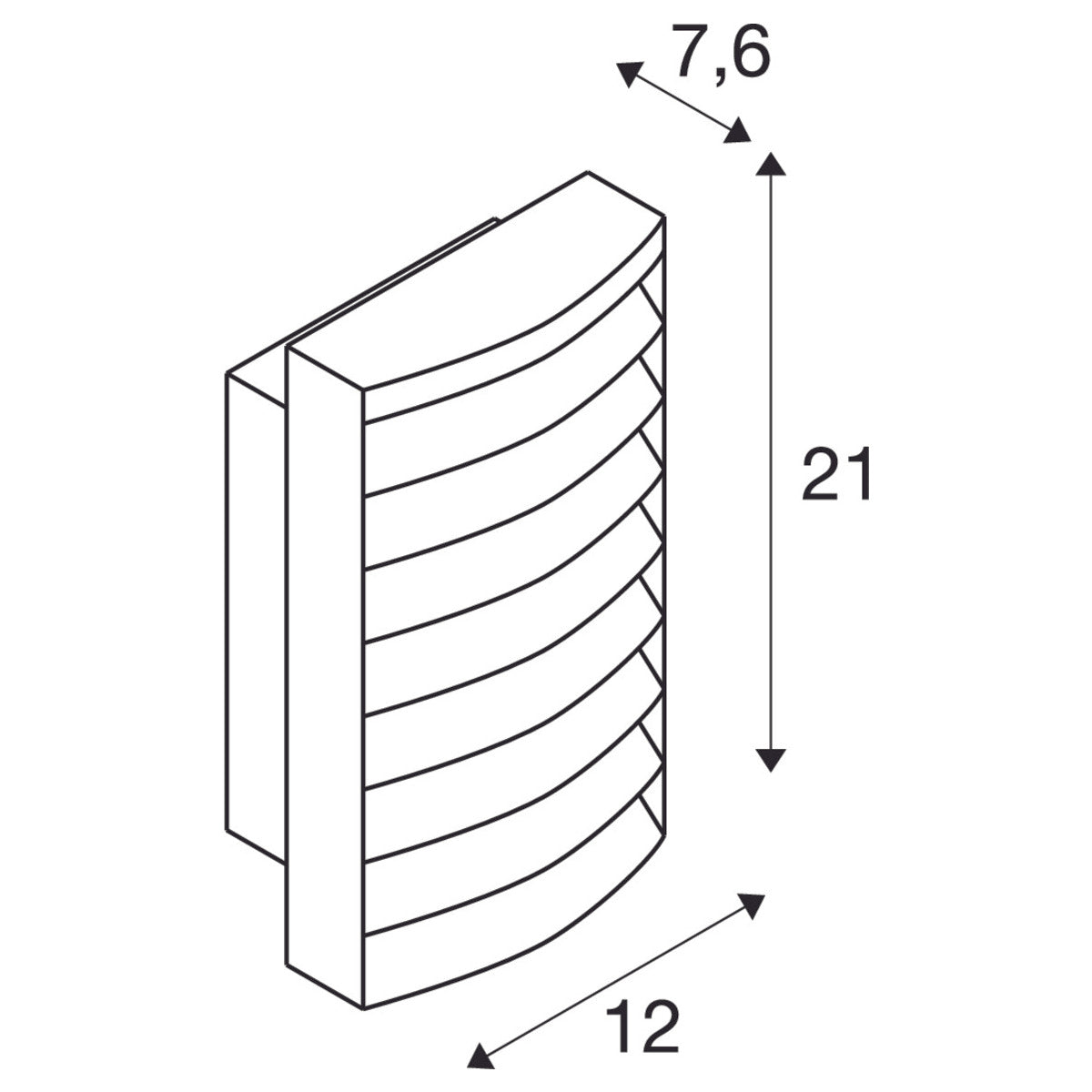

Width: 12 cm
Height: 21 cm
Impact resistance class: IK06
Impact resistance: 1 joule
Primary nominal voltage: 220-240V ~0/50/60 Hz
Secondary electrical current / Secondary voltage: 350 mA
Ambient temperature: -20 - 40 °C
Net weight: 1.3 kg
Weighted consumption: 14 kWh/1,000h
Lifespan: 50000 h
Number of lights on LS B16A: 160 St.
Number of lights in LS C16A: 160 St.
Input current intensity: 5 A
Input current duration: 100 μs
Temperature in the glass (light emission): 55 °C
Risk group: 1
Luminous flux: 350 / 400 lm
